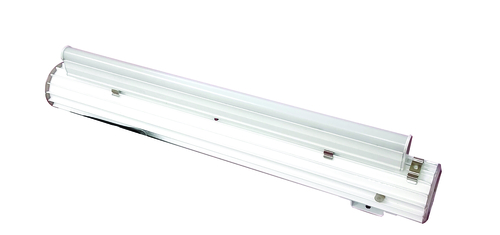

Emergency LED light 2 Feet

Emergency LED light 2 Feet
Emergency LED light 2 Feet
Send Inquiry
Product Code : M-EM
Brand Name : STEAM AIRETRIC CONTROLS
Product Description

Physical :-

a) Body :- Aluminium extruded with fins
L (450 mm ) X H (110 mm ) X W ( 60 mm )
b) Side covers :- ABS engineering grade.
c) Light fitting body :- Aluminium extruded with polycorbonate cover
d) Mounting :- Wall mounting ( Vertical or horizontal )
(Hook mounting optional )
e) Weight :- 1.5 Kg.
f) Weather protection :- IP54
g) Ambient temperature range :- -200C to 600C
h) Overall size :- L (450 mm ) X H (110 mm ) X W ( 60 mm )
I) Carton packing size :- 500 mm x 130 mm x 80 mm

Salient Features :-

1. Lithium-Ion battery
2. 2 Years warrantee with battery
3. LED light 50,000 hours life.
4. 4 hours & 8 hours backup in full & half intensity
5. 100 % Made in India product.
6. Brand :- MIMIC
7. Mfd. By. :- Steam Airetric controls
8. Model name :- MI - EL - 450


Electrical & Electronic

1. Input voltage : 230VAC + 20%
2. Input wattage :- 10 watt
3. Battery type :- Lithium-Ion, 2200 mAH / 11.8 V (Type)
                          1 x 3 series
4. Battery operating voltage :- 11.4V to 12.6V
5. LED load : 550 mA in full intensity / 225 mA in half intensity
6. Protection for battery :- Under voltage & over voltage cutoff provided
7. Charging time :- 10 hours8. Backup :- 4 hours for full intensity 8 hours for half intensity
9. Battery make :- South korea
10. LED type :- 2835 , 0.2 watt
11. LED Color temperature :- 65000K
12. LED heat dissipation :- Through extruded body
13. LED light dispersion :- Through P.C. diffused cover
14. LED PCB :- 0.8 mm Metal Core PCB(MCPCB)
15. Light output :- 1800, diffused
16. Lumens :- 600 Lumens 550A



https://tiimg.tistatic.com/fm/3025341/LED Emergency light 450 mm_26 8 17.pdf
